Digital Fiber Optic Transceiver

Company Image Placeholder

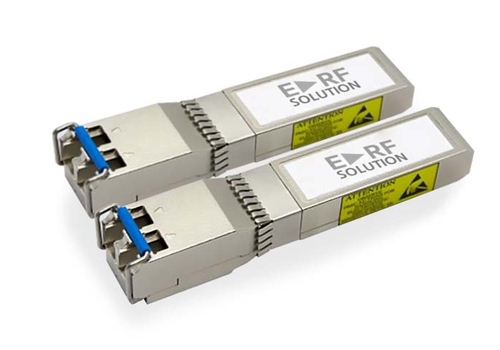

SFP Transceiver Module

The SFP Transceiver Module provides high-quality, hot-pluggable optical connectivity for a wide range of networking applications. It supports SFP / SFP+ / XFP / CSFP / PON form factors and complies with MSA and IEEE 802.3 standards, ensuring seamless interoperability and auto-negotiation between devices. With a wide wavelength and distance range, low EMI emissions, and single 3.3 V operation, it delivers stable, efficient, and reliable data transmission across diverse network environments.

Key Features

  • Wide Range of SFP Solutions
  • High quality optical transceiver : SFP / SFP+/ XFP / CSFP /PON
  • Hot Pluggable, MSA(Multi Source Agreement) compliant footprint
  • Supports IEEE 802.3 Auto-negotiation features to allow networking equipment to automatically determine and adjust the required settings
  • Various kinds SFP with different working wavelength and distance
  • Data is scrambled to reduce radiated emission
  • Wide operating temperature range
  • Single 3.3V Power supply
  • Assembled with low EMI emissions IC and fully metallic housings

Applications

  • Fast Ethernet / Gigabit Ethernet Switches and Routers
  • Storage Area Network(SAN)
  • Long Haul Network
  • Mobile Network
  • Metro Network
  • Fiber Channel
Company Image Placeholder

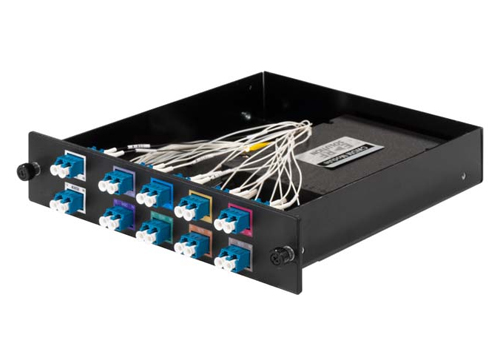

MUX / DEMUX

The MUX/DEMUX module provides a cost-effective and highly reliable front-haul optical solution for both short- and long-range network applications. Utilizing passive WDM (Wavelength Division Multiplexing) technology, it enables efficient co-site optical transmission with low optical insertion loss, high channel isolation, and excellent channel-to-channel uniformity. This passive device requires no additional electrical power and supports versatile mounting options including rack, wall, or pole installations. Designed for long haul, mobile, and metro networks, the MUX/DEMUX ensures stable optical connectivity and simplifies system deployment in demanding environments.

Key Features

  • Low cost Front haul solution : Short or Long range
  • Reliable passive WDM optical technology
  • Co-site optic transmission solution
  • Low Optical Insertion Loss
  • High channel isolation
  • Good channel-to-channel uniformity
  • Supports rack, wall and pole mounting
  • Requires no additional electrical power

Applications

  • Long Haul Network
  • Mobile Network
  • Metro Network

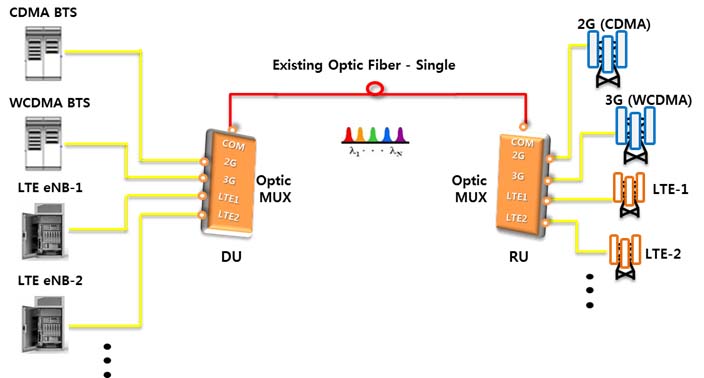

Network Diagram

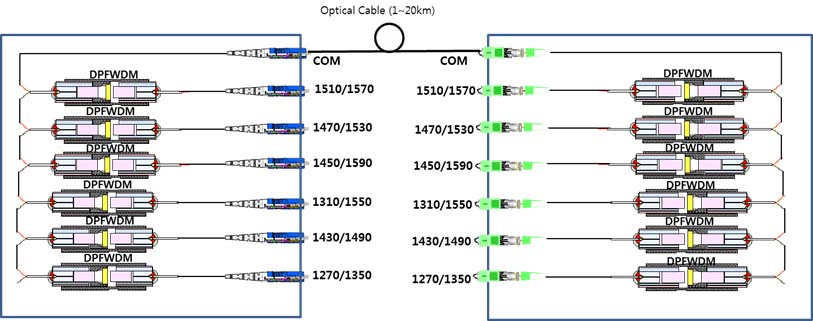

Block Diagram

Electrical Specifications (DU OPTIC MUX)

Parameter Wavelength
Wavelength P1:1510/1570
P2:1470/1530
P3:1450/1590
P4:1310/1550
P5:1430/1490
P6:1270/1350
Bandwidth λc ± 7.5 nm
Insertion Loss P1:≤1dB
P2:≤1.3dB
P3:≤1.6dB
P4:≤1.9dB
P5:≤2.2dB
P6:≤2.5dB
Isolation ≥30dB
Ripple ≤0.5dB
PDL ≤0.5dB
Return Loss ≥45dB
Optical Adaptor SC/PC
Temperature Operating : -30 ~ +80°C
Storage : -40 ~ +85°C

Electrical Specifications (RU OPTIC MUX)

Parameter Wavelength
Wavelength P1:1510/1570
P2:1470/1530
P3:1450/1590
P4:1310/1550
P5:1430/1490
P6:1270/1350
Bandwidth λc ± 7.5 nm
Insertion Loss P1:≤2.5dB
P2:≤2.2dB
P3:≤1.9dB
P4:≤1.6dB
P5:≤1.3dB
P6:≤1dB
Isolation ≥30dB
Ripple ≤0.5dB
PDL ≤0.5dB
Return Loss ≥50dB
Optical Adaptor SC/APC
Temperature Operating : -30 ~ +80°C
Storage : -40 ~ +85°C

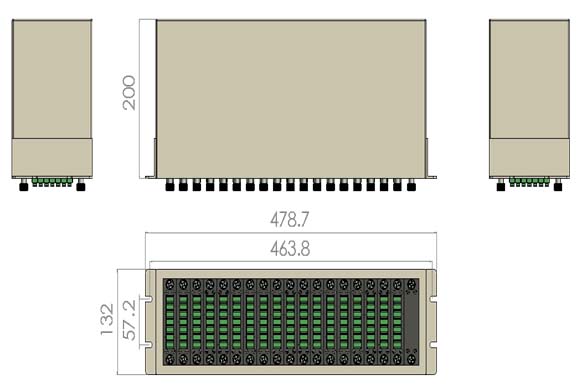

Mechanical Specification: DU Optic MUX

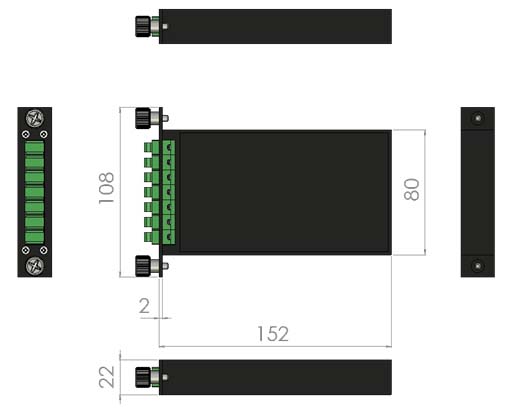

Mechanical Specification: RU Optic MUX

Mechanical Specification: RU Optic MUX

SFP & SFP BIDI Transciver

Part Number Wavelength (nm) Distance (km) LD PD Connector Tx Power (dBm) Rx Sensitivity (dBm)
SFP085-0.5A 850 0.55 VCSEL PIN LC -0.95~0 -21~0
SFP131-10A 1310 10 FP PIN LC -10~+3 -25~+3
SFP131-20A 1310 20 FP PIN LC -9~+3 -25~+3
SFP155-40A 1550 40 DFB PIN LC -4~+3 -25~+3
SFP155-60A 1550 60 DFB PIN LC 0~+5 -26~+3
SFP155-80A 1550 80 DFB PIN LC -3~+3 -26~+3
SFP155-100A 1550 100 DFB PIN LC 0~+5 -31~+9
SFP155-120A 1550 120 DFB APD LC 0~+5 -34~+9
SFP131D155-3A 1310 / 1550 3 FP PIN LC -10~+3 -25~+3
SFP131D149-10A 1310 / 1490 10 FP PIN LC -10~+3 -25~+3
SFP131D155-10A 1310 / 1550 10 FP PIN LC -10~+3 -25~+3
SFP131D149-20A 1310 / 1490 20 FP/DFB PIN LC -9~+3 -25~+3
SFP131D155-20A 1310 / 1550 20 FP/DFB PIN LC -9~+3 -25~+3
SFP131D149-40A 1310 / 1490 40 DFB PIN LC -4~+3 -25~+3
SFP131D155-40A 1310 / 1550 40 DFB PIN LC -4~+3 -25~+3
SFP131D155-60A 1310 / 1550 60 DFB PIN LC 0~+5 -25~+3
SFP149D155-80A 1490 / 1550 80 DFB PIN LC -3~+3 -26~+3
SFP149D155-120A 1490 / 1550 120 DFB APD LC 0~+5 -31~+9

CWDM SFP & CWDM SFP BIDI Transciver

Part Number Wavelength (nm) Distance (km) LD PD Connector Tx Power (dBm) Rx Sensitivity (dBm)
SFPC127-161-20A 1270~1610 20 FP PIN LC -9~+3 -25~+3
SFPC127-161-40A 1270~1610 40 DFB PIN LC -4~+3 -25~+3
SFPC127-161-60A 1270~1610 60 DFB PIN LC 0~+5 -26~+3
SFPC127-161-80A 1270~1610 80 DFB PIN LC -3~+3 -26~+3
SFPC127-161-100A 1270~1610 100 DFB PIN LC 0~+5 -31~+9
SFPC127-161-120A 1270~1610 120 DFB APD LC 0~+5 -34~+9
SFPC127D161-20A 1270~1610 20 FP PIN LC -9~+3 -25~+3
SFPC127D161-40A 1270~1610 40 DFB PIN LC -4~+3 -25~+3
SFPC127D161-60A 1270~1610 60 DFB PIN LC 0~+5 -26~+3
SFPC127D161-80A 1270~1610 80 DFB PIN LC -3~+3 -26~+3
SFPC127D161-100A 1270~1610 100 DFB PIN LC 0~+5 -31~+9

SFP+ & SFP+BIDI Transciver

Part Number Wavelength (nm) Distance (km) LD PD Connector Tx Power (dBm) Rx Sensitivity (dBm)
SFP+085-0.3 850 0.3 VCSEL PIN LC -6~-1 -10~+0.5
SFP+131-2 1310 2 FP PIN LC -6~-0.5 -14.4~+0.5
SFP+131-10 1310 10 DFP PIN LC -6~-0.5 -14.4~+0.5
SFP+131-20 1310 20 DFP PIN LC -3~+3 -14.4~+0.5
SFP+155-40 1550 40 EML PIN LC -1~+3 -15.8~+0.5
SFP+155-80 1550 80 EML APD LC 0~+4 -23~-6
SFP+127D133-10 1270 / 1330 10 DFP PIN LC -6~-0.5 -15~+0.5
SFP+133D127-10 1330 / 1270 10 DFP PIN LC -6~-0.5 -15~+0.5
SFP+127D133-20 1270 / 1330 20 DFP PIN LC -3~+3 -15~+0.5
SFP+133D127-20 1330 / 1270 20 DFP PIN LC -3~+3 -15~+0.5
SFP+127D133-40 1270 / 1330 40 DFP PIN LC 0~+5 -15~+0.5
SFP+133D127-40 1330 / 1270 40 DFP PIN LC 0~+5 -15~+0.5
SFP+127D133-60 1270 / 1330 60 DFP APD LC 0~+5 -20~-6
SFP+133D127-60 1330 / 1270 60 DFP APD LC 0~+5 -20~-6
SFP+149D155-80 1490 / 1550 80 EML APD LC 0~+4 -24~-7
SFP+155D149-80 1550 / 1490 80 EML APD LC -1~+3 -24~-7

CWDM SFP+ Transciver

DWDM SFP+ Transciver

XFP & XFP BIDI Transciver

CWDM XFP & DWDM XFP Transciver

Part Number Wavelength (nm) Distance (km) LD PD Connector Tx Power (dBm) Rx Sensitivity (dBm)
PSFF131-149-10AA 1310 / 1490 10 -5~0 -15~+0.5
PSFP149-131-10AA 1490 / 1310 10 -5~0 -15~+0.5
PSFF131-149-10AB 1310 / 1490 10 -5~0 -15~+0.5
PSFP149-131-10BA 1490 / 1310 10 -5~0 -15~+0.5
PSFF131-149-20AA 1310 / 1490 20 -3~+2 -15~+0.5
PSFP149-131-20AA 1490 / 1310 20 -3~+2 -15~+0.5
PSFF131-149-20AB 1310 / 1490 20 -3~+2 -15~+0.5
PSFP149-131-20BA 1490 / 1310 20 -3~+2 -15~+0.5

PON Transciver

Part Number Wavelength (nm) Distance (km) LD PD Connector Tx Power (dBm) Rx Sensitivity (dBm)
SFP085-0.5A 850 0.55 VCSEL PIN LC -0.95~0 -21~0
SFP131-10A 1310 10 FP PIN LC -10~+3 -25~+3
SFP131-20A 1310 20 FP PIN LC -9~+3 -25~+3
SFP155-40A 1550 40 DFB PIN LC -4~+3 -25~+3
SFP155-60A 1550 60 DFB PIN LC 0~+5 -26~+3
SFP155-80A 1550 80 DFB PIN LC -3~+3 -26~+3
SFP155-100A 1550 100 DFB PIN LC 0~+5 -31~+9
SFP155-120A 1550 120 DFB APD LC 0~+5 -34~+9
SFP131D155-3A 1310 / 1550 3 FP PIN LC -10~+3 -25~+3
SFP131D149-10A 1310 / 1490 10 FP PIN LC -10~+3 -25~+3
SFP131D155-10A 1310 / 1550 10 FP PIN LC -10~+3 -25~+3
SFP131D149-20A 1310 / 1490 20 FP/DFB PIN LC -9~+3 -25~+3
SFP131D155-20A 1310 / 1550 20 FP/DFB PIN LC -9~+3 -25~+3
SFP131D149-40A 1310 / 1490 40 DFB PIN LC -4~+3 -25~+3
SFP131D155-40A 1310 / 1550 40 DFB PIN LC -4~+3 -25~+3
SFP131D155-60A 1310 / 1550 60 DFB PIN LC 0~+5 -25~+3
SFP149D155-80A 1490 / 1550 80 DFB PIN LC -3~+3 -26~+3
SFP149D155-120A 1490 / 1550 120 DFB APD LC 0~+5 -31~+9
