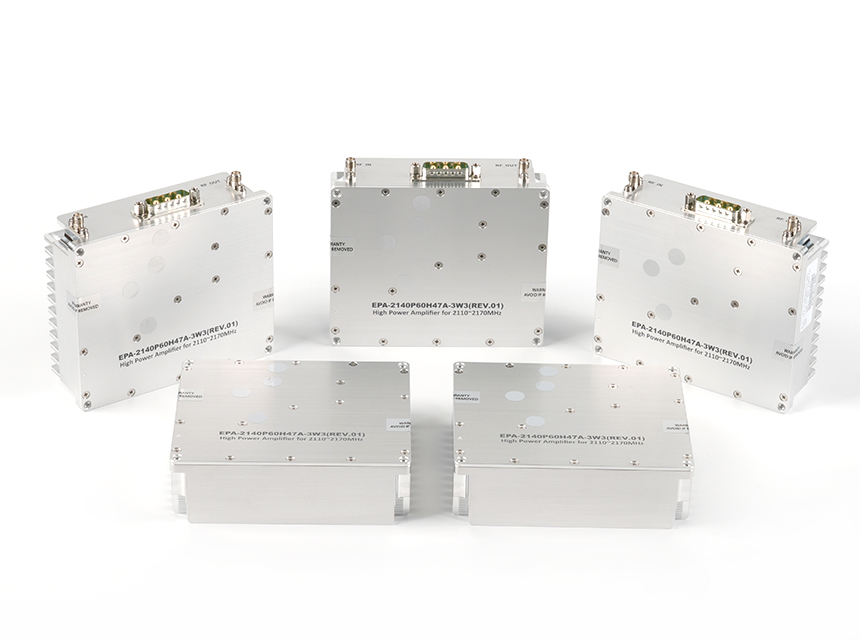

High Power Amplifier

Product Overview

Our high-power amplifiers are engineered to deliver clean, controllable RF output from modest input levels, emphasizing efficiency, linearity, and long-term stability. ALC and gain control help you hold target levels under varying conditions, while built-in protection safeguards both the amplifier and connected equipment. With serial control, rugged construction, and flexible configuration, these units integrate smoothly into new or existing platforms. Choose from proven standard options or collaborate with our engineers on a custom design matched to your band, output goals, and environmental requirements.

Key Features

  • Extremely cost competitive purchase price
  • Various range frequency covering
  • Wide range power output from low to high
  • Isolator protected output
  • Wide Temperature range
  • Field Proven reliability
  • Smaller size Rugged design
  • Several Standard Options available as well as Custom Design

Applications

  • TERA/GSM/DCS/UMTS/WCDMA/LTE/5G System
  • RF Repeater
  • DAS (Distributed Antenna System)
  • RRH (Remote Radio Head)
  • Amplifier for Digital Television
0 selected
Part Number Frequency (MHz) Pout (Watts) Gain (dB) Voltage (Volts) Current (Amps) Size (mm)
EHP30-88P20DC1 30~88 20 43 50 2.5 200 X 100 X 30
EHP88-108P10EJ1 88~108 10 50 27 3.5 162 X 73 X 29
EHP134-176P10EJ1 134~176 10 50 27 3.5 160 X 90 X 25
EHP174-240P10EJ1 174~240 10 50 27 3.5 160 X 90 X 25
EHP300-330P20DE1 300~330 20 45 28 3 230 X 70 X 30
EHP300-450P60EE1 300~450 60 55 28 10 280 X 250 X 45
EHP390-460P2CJ1 390~460 2 30 27 2 140 X 120 X 25
EHP412-414P3DJ1 412~414 3 40 27 2 140 X 120 X 25
EHP450-470P40DC1 450~470 40 43 28 6 80 X 95 X 25
EHP450-600P40EJ1 450~600 40 50 28 8 280 X 250 X 45
EHP700-800P30EJ1 700~800 30 50 27 8 180 X 150 X 28
EHP728-768P60EJ1 728~768 60 50 28 8 230 X 255 X 40
EHP740-806P6EJ1 740~806 6 50 27 5 180 X 150 X 28
EHP791-821P6DE1 791~821 6 45 28 2.5 180 X 150 X 28
EHP800-900P6DE1 800~900 6 45 27 1.6 180 X 150 X 28
EHP806-821P2EB1 806~821 2 52 27 1.5 170 X 110 X 28
EHP824-849P2DJ1 824~849 2 40 28 2.5 170 X 110 X 28
EHP851-894P30EJ1 851~894 30 50 27 11 100 X 90 X 25
EHP869-894P10DE1 869~894 10 45 27 3 135 X 100 X 25
EHP920-960P70DG1 920~960 70 47 28 6.5 135 X 100 X 25
EHP920-960P100DG1 920~960 100 47 27 12 200 X160 X 25
EHP960-1240P200EE1 960~1240 200 55 28 16 200 X160 X 25
EHP1100-1300P200EJ1 1100~1300 200 50 28 20 235 X 180 X 27
EHP1190-1210P20EJ1 1190~1210 20 50 27 8 100 X 90 X 25
EHP1200-1300P100EC1 1200~1300 100 53 28 10 180 X 150 X 28
EHP1490-1510P20EJ1 1490~1510 20 50 27 8 100 X 90 X 25
EHP1500-1700P200EH1 1500~1700 200 56 28 24 235 X 180 X 27
EHP1700-1900P6DJ1 1700~1900 6 40 27 5 100 X 90 X 25
EHP1800-1900P6DE1 1800~1900 6 45 27 5 100 X 90 X 25
EHP1805-1880P25DJ1 1805~1880 25 40 27 3 100 X 90 X 25
EHP1805-1910P25DG1 1805~1910 25 47 27 3 120 X 100 X 25
EHP1900-2000P60EE1 1900~2000 60 55 27 10 180 X 150 X 28
EHP1900-2200P15CH1 1900~2200 15 38 27 3 80 X 95 X 25
EHP1920-1960P8DE1 1920~1960 8 45 27 5 80 X 95 X 25
EHP1930-1990P100DE1 1930~1990 100 45 27 11 180 X 150 X 28
EHP2000-2200P60DG1 2000~2200 60 47 28 6.5 135 X 100 X 25
EHP2100-2200P25DJ1 2100~2200 25 40 27 3 100 X 90 X 25
EHP2110-2170P25DE1 2110~2170 25 45 28 3 100 X 90 X 25
EHP2110-2170P100DE1 2110~2170 100 45 27 12 180 X 150 X 28
EHP2200-2300P25DE1 2200~2300 25 45 28 4.5 100 X 90 X 25
EHP2300-2400P5DE1 2300~2400 5 45 12 2.5 80 X 95 X 25
EHP2300-2620P200EE1 2300~2620 200 55 28 27 280 X 250 X 45
EHP2400-2500P50DE1 2400~2500 50 45 28 6 100 X 90 X 25
EHP2400-2700P25DE1 2400~2700 25 45 28 3 120 X 100 X 25
EHP2500-2700P30DE1 2500~2700 30 45 27 8 180 X 150 X 28
EHP2570-2690P25DE1 2570~2690 25 45 27 12 120 X 100 X 25
EHP2600-2700P10DE1 2600~2700 10 45 27 3 120 X 100 X 25
EHP2620-2690P25CG1 2620~2690 25 37 28 2.5 120 X 100 X 25
EHP2620-2695P100EJ1 2620~2695 100 50 38 13 180 X 150 X 28
EHP3300-3400P10DE1 3300~3400 10 45 27 3 180 X 150 X 28
EHP3400-3600P15DH1 3400~3600 15 46 28 4 200 X 150 X 38
EHP3510-3594P100EJ1 3510~3594 100 50 28 14 200 X 150 X 38
EHP4400-5000P20DH1 4400~5000 20 46 28 2.5 180 X 150 X 28
EHP5070-5270P10CJ1 5070~5270 10 30 28 3 180 X 150 X 28
EHP5700-5900P15DG1 5700~5900 15 47 28 2.5 180 X 150 X 28
