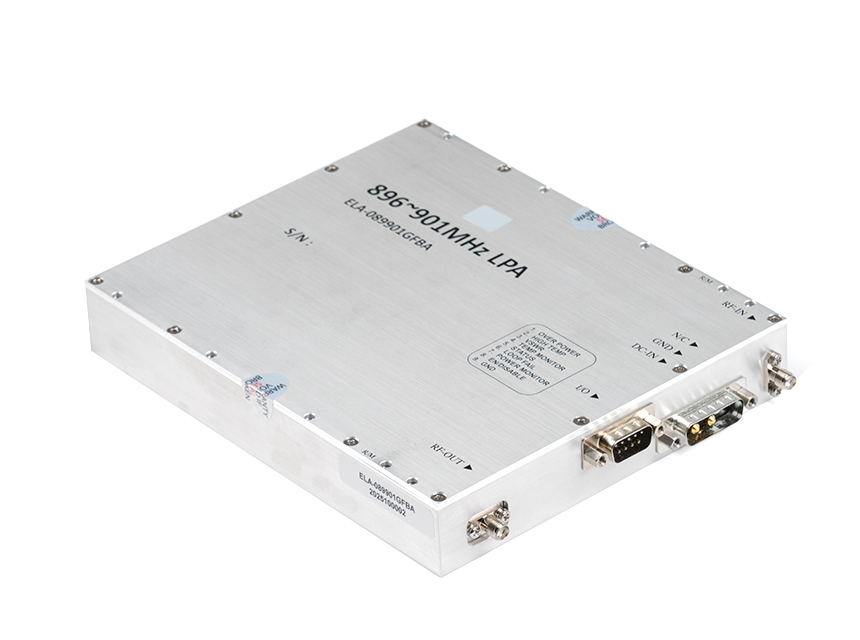

Linear Power Amplifier

Product Overview

ECHO RF Solution Cost Competitive, multi carrier and single carrier Linear Power Amplifiers products provide Telecommunication systems manufacturers with extremely high reliability, excellent performance and significant price advantage.

Key Features

  • Multi-carrier Operation
  • High linearity and high efficiency
  • Various range frequency covering
  • Wide range power output from low to high
  • In/out High Isolation
  • Wide Temperature range
  • Field Proven reliability
  • Several Standard Options available as well as Custom Design

Applications

  • TERA/GSM/DCS/UMTS/WCDMA/LTE/5G System
0 selected
Part Number Frequency (MHz) Pout (Watts) Gain (dB) Voltage (Volts) Current (Amps) Size (mm)
ELP335-360P6DE1 335~360 6 45 27 2 180 X 150 X 28
ELP380-385P6DE1 380~385 6 45 27 2 180 X 150 X 28
ELP380-420P20ED1 380~420 20 54 28 7 205 X 180 X 28
ELP390-395P6DE1 390~395 6 45 27 2 180 X 150 X 28
ELP390-430P10DE1 390~430 10 45 27 2.5 180 X 150 X 28
ELP430-470P6DE1 430~470 6 45 27 2 180 X 150 X 28
ELP450-490P15DJ1 450~490 15 40 27 5 205 X 180 X 28
ELP703-788P250EH1 703~788 250 58 28 25 180 X 150 X 28
ELP728-758P6DE1 728~758 6 45 27 2 180 X 150 X 28
ELP728-793P6DE1 728~793 6 45 27 2 180 X 150 X 28
ELP758-803P30DE1 758~803 30 45 28 6 210 X 120 X 30
ELP791-862P250EH1 791~862 250 58 28 25 180 X 150 X 28
ELP791-821P10EJ1 791~821 10 50 28 2 120 X 180 X 28
ELP806-825P10DJ1 806~825 10 40 28 3 180 X 110 X 28
ELP806-890P60GB1 806~890 60 72 27 20 210 X 180 X 28
ELP824-849P6DE1 824~849 6 45 27 2 180 X 110 X 28
ELP850-855P50DI1 850~855 50 49 27 15 210 X 180 X 28
ELP851-894P20ED1 851~894 20 54 27 6 205 X 180 X 28
ELP861-894P10DE1 861~894 10 45 27 3 180 X 110 X 28
ELP918-960P16DB1 918~960 16 42 28 5 210 X 110 X 28
ELP920-960P6DE1 920~960 6 45 27 5 180 X 110 X 28
ELP935-960P30EJ1 935~960 30 50 27 8 210 X 120 X 30
ELP1800-1900P6DE1 1800~1900 6 45 27 1.5 180 X 110 X 28
ELP1805-1840P20ED1 1805~1840 20 54 27 6 210 X 120 X 30
ELP1805-1880P30DE1 1805~1880 30 45 27 8 210 X 120 X 30
ELP1920-1960P8DE1 1920~1960 8 45 27 5 180 X 110 X 28
ELP1930-1995P60EJ1 1930~1995 60 50 28 10 210 X 180 X 28
ELP2110-2170P16DB1 2110~2170 16 42 27 6 150 X 100 X 32
ELP2110-2180P10DH1 2110~2180 10 48 28 2.5 180 X 120 X 30
ELP2300-2400P16DD1 2300~2400 16 44 28 6 210 X 120 X 30
ELP2345-2360P4DE1 2345~2360 4 45 28 1.4 150 X 100 X 32
ELP2496-2690P20FJ1 2496~2690 20 60 28 4.5 180 X 150 X 28
ELP2570-2620P30DE1 2570~2620 30 45 27 8 210 X 120 X 30
ELP2620-2690P6DE1 2620~2690 6 45 28 2.4 180 X 110 X 28
ELP2630-2670P6DE1 2630~2670 6 45 27 2 180 X 110 X 28
ELP3650-3700P6DE1 3650~3700 6 45 27 2 180 X 110 X 28
