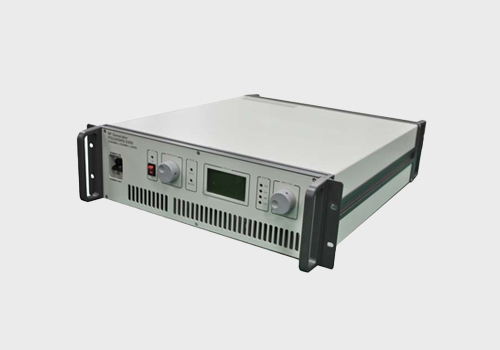

RF Signal Generator provides a stable continuous-wave source up to 3.5 GHz for 5G and broadband RF applications. It includes an internal CW generation function, eliminating the need for an external signal source. Output level and frequency can be precisely adjusted using an amplifier or control interface, ensuring flexible operation for various test and development environments.
| Parameter | Specification | Remark |
|---|---|---|
| Operating Frequency Range | 3400~3800MHz | @adjustable with 1MHz step |
| Operating Bandwidth | 400MHz | - |
| Output Power Level | 53dBm | @200W |
| Output Power Adj. Range | 1~200W | @STEP : 10W |
| Carrier Modulation | CW | @Include Generator |
| Power Emission | 60dBc min | @Fc±30KHz / Max Power |
| Frequency Error | ±6.125KHz max | - |
| Output VSWR | 1.5:1 | - |
| Spurious Signals | -60dBc min | - |
| POWER Consumption | 1000W max | @Pout : 200W |
| Supply Voltage | 100~240AVC | - |
| Operating Temperature | 0~+40℃ | - |
| Parameter | Explanation | Remark |
|---|---|---|
| Dimension | 482.6 x 133 x 588 mm | - |
| Connector Type | N-Type Female | - |
| Control | PA ON/OFF, Freq. Adj., Power Level Adj. (Manual and Remote Control, PC: LAN / RS232) | - |
| Display | Frequency, Output Power, Generator Status (on/off), Alarm | - |
| Protection | Over Power, Over Current, High Temperature, Over VSWR | - |
| Power Emission | 60dBc min | - |
| Weight | 15Kg | - |
| Cooling | Built in Forced-Air System (Low noise FAN, On/Off) | - |
