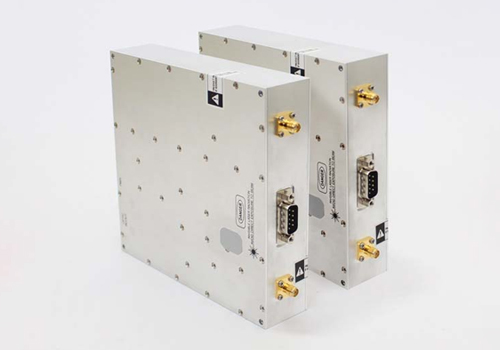

Broadband and Jamming amplifier

Product Overview

Broadband & Jamming amplifiers design offer extremely broad bandwidth, high-power, high-efficiency, and reliability. ECHO RF Solution power Amplifiers are available in power levels to 200 wattts in the industry's most compact form factors, and use semiconductor technologies such as LDMOS and GAN, as well as other technologies as specific applications require.

Key Features

  • Operating Broad bandwidth
  • High output power
  • Ultra-Fasting enable/disable Switching time
  • Built-in self-protection functions
  • Small Size & Light Weight
  • Cost-Effective Solution
  • Several Standard Options available as well as Custom Design

Applications

  • Broadband Jamming System
  • FM, AM, CW boosting
  • RF passive Test system platforms
  • Lab test and measurement
0 selected
Part Number Frequency (MHz) Pout (Watts) Gain (dB) Voltage (Volts) Current (Amps) Size (mm)
EBP20-520P100EJ1 20~520 100 50 28 12 154 X 70 X 27
EBP20-1000P50EE1 20~1000 50 55 28 11 200 X 100 X 30
EBP20-2500P25DE1 20~2500 25 45 28 3.5 180 X 120 X 30
EBP500-2500P10DD1 500~2500 10 44 28 1.2 120 X 90 X 25
EBP500-2500P50DH1 500~2500 50 48 28 6 150 X 100 X 28
EBP500-2700P100ED1 500~2700 100 54 30 12 210 X 100 X 28
EBP500-3000P100EJ1 500~3000 100 50 28 24 240 X 90 X 28
EBP500-4200P5BE1 500~4200 5 25 28 1.2 150 X 32 X 30
EBP700-2700P100DH1 700~2700 100 48 28 12 230 X 150 X 30
EBP700-3800P15DE1 700~3800 15 45 28 3 210 X 100 X 28
EBP700-6000P25DH1 700~6000 25 48 28 3 230 X 150 X 30
EBP800-2170P12DA1 800~2170 12 41 28 1.2 180 X 90 X 28
EBP800-3000P50EJ1 800~3000 50 50 28 6 180 X 90 X 28
EBP1000-2000P150EJ1 1000~2000 150 50 28 3 190 X 100 X 27
EBP1000-3000P50DJ1 1000~3000 50 40 28 7 180 X 90 X 28
EBP2000-3000P50DG1 2000~3000 50 47 28 2.8 150 X 100 X 28
EBP2000-4000P15DB1 2000~4000 15 42 13 8 280 X 125 X 27
EBP2000-6000P100EJ1 2000~6000 100 50 28 24 230 X 120 X 27
EBP2500-6000P30EG1 2500~6000 30 57 28 6 140 X 120 X 25
EBP3000-3500P100EJ1 3000~3500 100 50 28 12 230 X 150 X 30
EBP3000-6000P35DF1 3000~6000 35 46 28 9 180 X 80 X 30
EBP3500-4000P100EJ1 3500~4000 100 50 28 12 230 X 150 X 30
EBP5000-6000P5CF1 5000~6000 5 36 28 1.4 140 X 80 X 20
EBP6000-8000P30DE1 6000~8000 30 45 28 7 150 X 100 X 28
