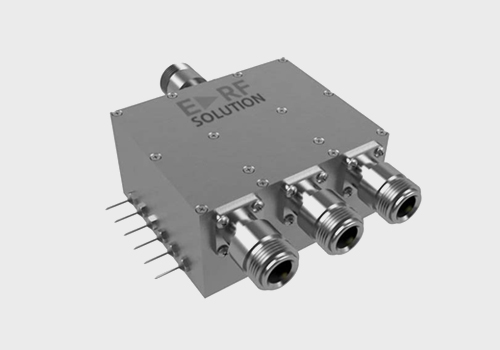

RF Switch

Product Overview

RF Switch is used to control signal routing in RF and microwave systems from DC to 6 GHz. It offers low insertion loss, high-speed switching, and supports SPST, SPDT, and DPDT configurations for reliable performance in communication, radar, and test applications.

Key Features

  • Frequency Range : DC to 6GHz
  • Operating Wide bandwidth
  • Available with TTL driver and a variety of control Voltage
  • SPST,SPDT,DPDT,etc
  • Low insertion Loss and High Speed
  • High Power Capability
  • Fail-safe type and Latching type
  • RF connector Combination

Applications

  • RF Communication System
  • Radar and Defense System
  • RF Test and Measurement Equipment
  • Antenna Switching and Routing
  • Base Station and Repeater System
0 selected
Part Number Frequency (MHz) Power Handling (Watts,CW) I/L (dB,Max) Isolation (dB,Min) Size (mm)
ERS50-500P50TSD1 50~500 50 0.5 65 100 X 80 X 38
ERS50-500P100TSD1 50~500 100 0.6 60 100 X 80 X 38
ERS500-2000P50TSD1 500~2000 50 1 60 100 X 80 X 38
ERS1000-2000P100TSD1 1000~2000 100 1 60 100 X 80 X 38
ERS1000-3000P100TSD1 1000~3000 100 1 40 100 X 80 X 38
ERS2000-3000P100TSD1 2000~3000 100 1 40 100 X 80 X 38
ERS2330-2360P200TSD1 2330~2360 200 1 80 100 X 80 X 38
